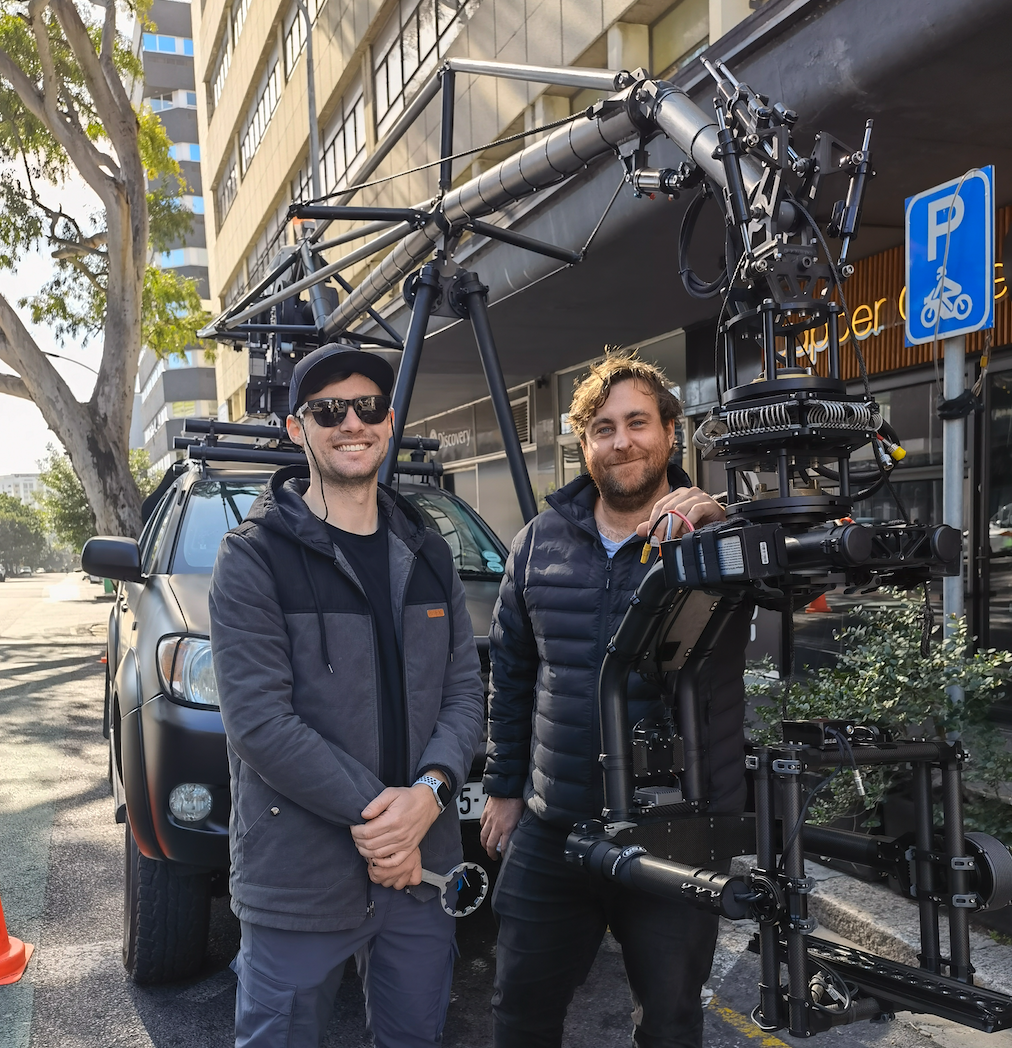

The Dragon Arm is fully Robotic with a 360 Degree Range of motion. With a 14 foot long arm and a top speed of 150km/h fully-loaded, the Dragon delivers incredibly dynamic shots at high speeds. The system uses either the DJI Ronin 2 or the Movi-XL heads.
Smooth
Full control
Arm specs
14 Foot robotic arm with 3-stage dampening system, Joystick controlled.
Max height from ground to Mitchell Mount: 4.5m
Length of arm: 4.4m (14.4ft)
Arm rotation: 360°
Speed: 5 sec/360°
Operational angle: ±45°
Payload capacity: 50kg (110.2lb)
Height clearance: 3.2m (Arm in stow)
Head specs
3-axis gyro-stablished (Recommended Movi XL or Ronin 2)
Pan: 360° continuous
Roll: ±30°
Tilt: ±135°
Operational temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Built-in GPS
Operate via wheels or joystick
Vehicle specs
Toyota Hilux 4.0L V6 Double Cab 4×4
0-100km/h: 11s loaded
340Nm torque
Automatic transmission
Weight: 2790kg
Top Speed fully loaded: 150km/hr
Trained Precision Driver
Seating for 6PAX including driver and arm operator, 5PAX in cab and 1 PAX in exterior back of vehicle
